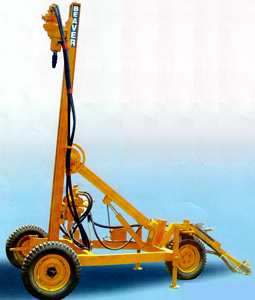

Products- 120 Wagon Drill
Related Links
Technical Specifications of BEAVER 120 WAGON DRILL:
|
||
Capacity of drilling
|
 |
Dia 4 1/2" (115 mm)to a depth of 125 ft. (26 Mts.) under favourable drilling conditions.
|
Type of Drilling
|
|
DTH Method
|
Drill Rod Size
|
|
3" dia (76 mm dia)
|
Mast
|
|
Suitable to handle 5 ft. or 5 ft. (1.5 mts.)
|
Pull up Force
|
|
2200 kg
|
Pull up Speed
|
|
15 mts./min
|
Maximum Rotation Speed
|
|
0 to 50 rpm
|
Maximum Torque
|
|
1125 Nm
|
Propulsion Speed
|
|
0 to 1.5 kmph
|
Height of the mast raised
|
|
3600 mm
|
Height of the mast lowered
|
|
900 mm
|
Mast lateral swivel
|
|
+/- 15 deg
|
Width
|
|
1800 mm
|
Note: Due to the continuous development, all the above specifications are subject to change
